DC Motor 24V 3000W 1400 rpm B5 Flange CFR CA151.1616.01

Name: DC Motor 24V 3000W 1400 rpm B5 Flange CFR CA151.1616.01
SKU: 54257
Price: 1748.75 EUR
Availability: InStock

ERP code: 54257

Catalogue number: CA151.1616.01

2.493,12 € Najniža cijena u posljednjih 30 dana

1.748,75 € -30%

In stock — 1 piece, ships immediately

The CFR CA151.1616.01 is a 24 V DC electric motor rated at 3000 W, running at 1400 rpm with a torque of 20.5 Nm. It is a brushed, wound-field motor …

Voltage: 24 V
Shaft diameter Ø: 24 mm
Power: 3 kW
Weight: 24000 g

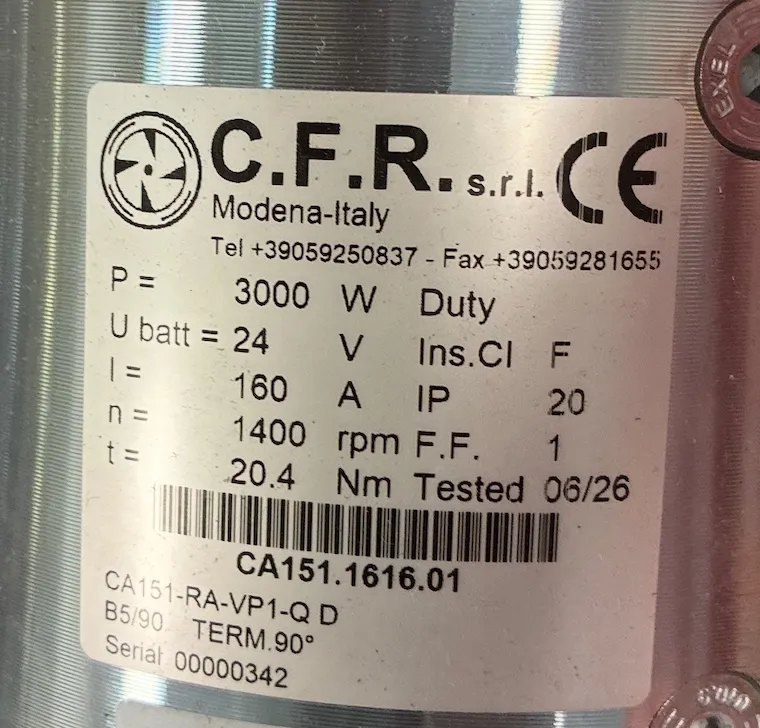

The CFR CA151.1616.01 is a 24 V DC electric motor rated at 3000 W, running at 1400 rpm with a torque of 20.5 Nm. It is a brushed, wound-field motor from the CA151 series made by C.F.R. of Modena, Italy, built with a B5 (BG90) flange and a Ø24 mm shaft with an 8x7x30 feather key to UNI 6604. A built-in thermal sensor (90 °C, N.C.) lets the drive electronics monitor winding temperature.
The motor is intended for hydraulic power packs, forklifts and warehouse vehicles, aerial work platforms, agricultural and municipal machinery and other 24 V battery-powered equipment. The standard B5 flange with 4 holes Ø11.5 mm at 90° simplifies mounting to pumps and gearboxes, and the electrical connection is made via two M8 terminals.
Technical data

Voltage: 24 V DC
Power: 3000 W (3 kW)
Speed: 1400 rpm
Torque: 20.5 Nm
Direction of rotation: clockwise (CW)
Flange: B5 (BG90), 4 holes Ø11.5 mm at 90°
Shaft: Ø24 mm, feather key 8x7x30 UNI 6604
Electrical connection: 2 x M8
Thermal protection: thermal sensor 90 °C, N.C.
Protection class: IP20
Weight: 24 kg
Part number: CA151.1616.01
Reference codes: CB5V243000, GM.38600
